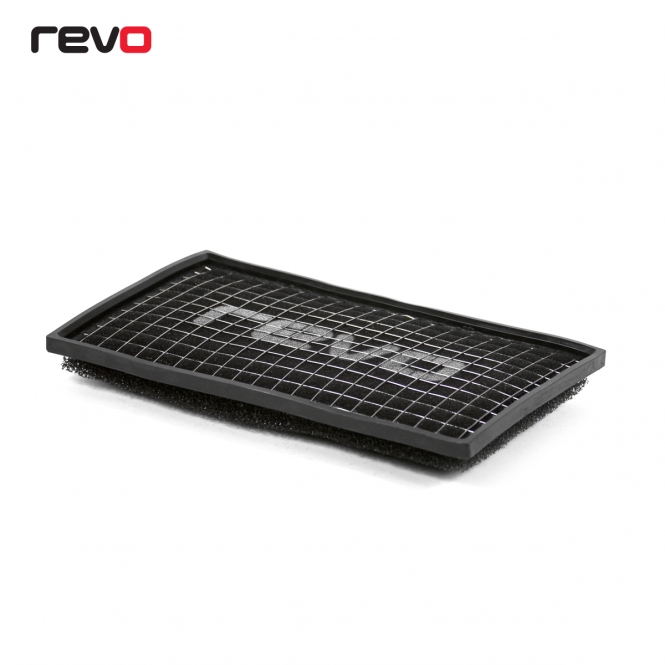

ProPanel Air Filter Element MQB Audi A3/S3, SEAT Leon, Skoda Octavia, VW Golf 7

Revo Pro-Panel Filters use multi-layered foam technology to trap dust and dirt while maintaining flow efficiency over time. Using foam increases the filter’s surface area and is washable, compared to standard paper and cotton filters which trap dust on the surface and become less efficient the more they are used. (RV582M700101)

Revo ProPanel Filter
High-Performance Air Filters

Overview

The Revo ProPanel is a high-grade direct replacement filter for your vehicle. Designed as direct replacement filters to fit inside your factory airbox and are suitable for road or competition use.

Benefits

Designed to increase horsepower and rate of acceleration
Exceptional filtration
High air flow with three layers of foam
Lifetime warranty
Cleanable (Every 10,000Miles or 12 Months)
Works with original manufacturers airbox

Design and performance

Why choose foam? Because, compared to paper or other filter technologies, reticulated polyester foam achieves optimum performance against three key criteria:

Maximum airflow: the ability to allow air to pass through without causing a large pressure drop.
Cleaning efficiency: the capability to arrest a high proportion of airborne dust while feeding the engine clean air.
Dust load-up tolerance: the capability to absorb a large amount of dust without reducing air flow capacity.

This design of filter has been used in all fields of motorsport from Formula 1 to the World Rally Championship. The range receives this same attention to detail at the design stage and is then taken into production with consummate quality.

Three layer foam system

Revo ProPanel Filters use multi-layered foam technology to trap dust and dirt while maintaining flow efficiency over time. Using foam increases the filter's surface area and is washable, compared to standard paper and cotton filters which trap dust on the surface and become less efficient the more they are used, choking the engine and reducing performance.

The outer core is a coarse foam designed to trap larger particles, the second layer is a medium foam designed to trap most particles and the inner core is fine foam which will trap any particles small enough to reach it. The triple layer foam design ensures an exceptional level of engine protection and long-term performance advantage.

Revo Three Stage Foam Filter

1: Stainless steel wire mesh
To avoid erosion, only the highest quality steel is used.

2: Course outer layer:
Stops large pieces of dirt and foreign matter from penetrating further. Straightens airflow into subsequent layers.

3: Medium grade middle layer:
This second filtration layer traps most of the harmful dirt that leads to engine damage.

4: Fine inner layer:
Extracts fine particles while allowing full airflow to the engine for maximum power.

Advantages of a Revo ProPanel filter

Emissions legal in all 50 US states
Will not void vehicle warranty
Lifetime warranty (to the original purchaser with proof of purchase)

Manufacturer Model Engine Year
Audi A1 (GB) 40 TFSI 2018 >
Audi A3 (8V) 1.8 / 2.0 TFSI 2012 >
Audi A3 (8V) 1.6 / 2.0 TDI 2012 >
Audi S3 (8V) 2.0 TFSI 2012 >
Audi A3 (8Y) 30/35/40 TDI 2019 >
Audi S3 (8Y) 2.0 TFSI 2020 >
Audi Q2 (GA) 1.6 / 2.0 TDI 2016 >
Audi SQ2 (GA) 2.0 TFSI 2018 >
Audi Q3 (F3) 35/40 TDI 2018 >
Audi Q3 (F3) 40/45 TFSI 2018 >
Audi TT (Mk3) 1.8 / 2.0 TFSI 2014 >
Audi TT (Mk3) 2.0 TDI 2014 >
Cupra Formentor 2.0 TDI 2021 >
Cupra Formentor 2.0 TSI 2020 >
Seat Arona (KJ) 1.6 TDI 2017 >
Seat Ateca (KH) 1.6 / 2.0 TDI 2016 >
Seat Ateca (KH) 2.0 TSI / Cupra 2017 >
Seat Ibiza (VI) 1.6 TDI 2017 >
Seat Leon (Mk3) 1.6 / 2.0 TDI 2012 >
Seat Leon (Mk3) 1.8 / 2.0 TSI 2012 >
Seat Leon (Mk4) 2.0 TDI 2019 >
Seat Leon (Mk4) 2.0 TSI 2021 >
Seat Tarraco 2.0 TDI 2018 >
Seat Tarraco 2.0 TSI 2018 >
Skoda Kamiq 1.6 TDI 2019 >
Skoda Karoq (NU) 1.6 / 2.0 TDI 2017 >
Skoda Karoq (NU) 2.0 TSI 2019 >
Skoda Kodiaq (NS) 2.0 TDI 2017 >
Skoda Kodiaq RS 2.0 TSI 2021 >
Skoda Kodiaq (NS) 2.0 TSI 2017 >
Skoda Octavia (MK3) 1.8 / 2.0 TSI 2013 >
Skoda Octavia (MK3) 1.6 / 2.0 TDI 2013 >
Skoda Octavia (MK4) 2.0 TDI 2019 >
Skoda Octavia (Mk4) 2.0 TSI 2020 >
Skoda Scala 1.6 TDI 2019 >
Skoda Superb (Mk3) 1.8 / 2.0 TSI 2015 >
Skoda Superb (Mk3) 1.6 / 2.0 TDI 2015 >
VW Arteon (3H) 2.0 TDI 2017 >
VW Arteon (3H) 2.0 TSI 2017 >
VW Caddy (V SB) 2.0 TDI 2020 >
VW Golf Vll (Mk7) 1.8 / 2.0 TSI / GTI / R 2012 >
VW Golf Vll (Mk7) 1.6 / 2.0 TDI / GTD 2012 >
VW Golf Vlll (Mk8) GTI 2.0 TSI 2019 >
VW Golf Vlll (Mk8) 2.0 TDI 2019 >
VW Passat 1.8 / 2.0 TSI 2015 >
VW Passat 1.6 / 2.0 TDI 2014 >
VW Polo (VI AW) 1.6 TDI 2017 >
VW Polo GTI (AW) 2.0 TSI 2017 >
VW T-Cross (C11) 1.6 TDI 2018 >
VW T-Roc (A1) 1.6 / 2.0 TDI 2017 >
VW T-Roc (A1) 1.5 / 2.0 TSI 2017 >
VW Tiguan (II AD1) 1.6 / 2.0 TDI 2016 >
VW Tiguan (II AD1) 2.0 TSI 2016 >
VW Touran (5T) 1.6 / 2.0 TDI 2015 >
VW Touran (5T) 1.8 TSI 2015 >
