H&R TRAK+ 7mm rear wheel spacers for Renault 5 E-Tech

H&R DR-system slip-on spacers for the rear axle, supplied as a pair. Each spacer is 7mm thick, giving 14mm total track widening across the axle. Choose the finish from the Spacer colour dropdown above.

Colour and part numbers

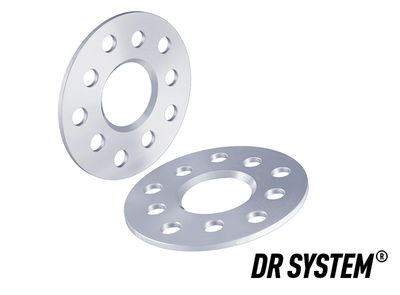

• Silver: 14656601

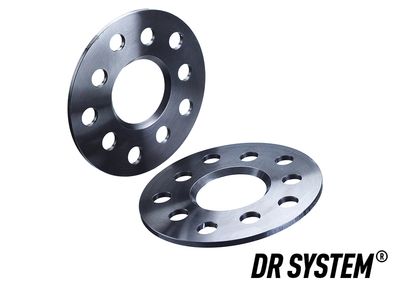

• Black: B14656601
• Both finishes are the same price.

Specifications

• Thickness: 7mm per wheel
• Track widening: 14mm per axle
• Bolt pattern: 5x114.3
• Supplier-listed centring diameter: 66mm
• Wheel bolt thread: M12x1.5
• System: H&R DR, without double-sided centring
• Not for steel wheels
• Supplier-listed minimum wheel offset: ET15; check the application approval and wheel combination

Important fitting information

Longer wheel bolts are required and are not included. Order the correct thread, seat type and length for your wheels and spacer thickness. Bolts must provide the required engagement without fouling brake or ABS components.

These slim spacers do not have an extended hub-centring lip. The vehicle must retain sufficient original hub engagement to centre the wheel correctly after the spacer is fitted. Check wheel, brake, arch and steering clearance before installation.

The supplier lists Part Type Approval (PTA). Read the application-specific approval and installation instructions: the approval covers specified original wheels, and other wheel/tyre combinations may have additional requirements. Fitment is subject to the individual vehicle and wheel specification.

Supplier-listed applications include Renault 5 E-Tech 150 from June 2024, and 120 and 95 from November 2024.

Silver and black supplier images are shown for finish reference. Contact RTECSHOP with your vehicle and wheel details for fitment advice, correct bolts, current availability and workshop fitting.

Additional Notes: Longer wheel bolts required and sold separately. Check hub engagement and wheel clearance. - H&R TRAK+ 7mm spacers for the Renault 5 E-Tech rear axle. Pair: 14mm track widening. Select silver or black.
